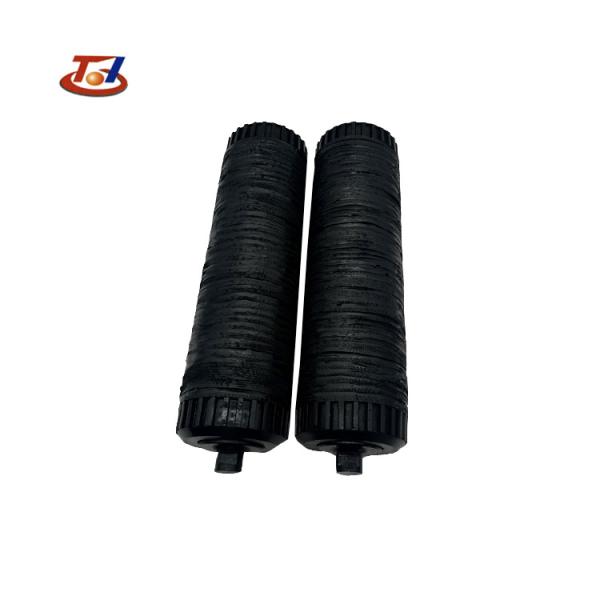

Material Handling Equipment UHMWPE Plastic Conveyor Belt Roller
Dustproof High Density Polyethylene Pipe Plastic Gravity Conveyor Idlers Rollers
polyethylene plastic belt conveyor roller is a high-tech product, which consists of uhmwpe pipe,metal bearing, metal shaft , plastic bearing housing , sealing ring and so on . Compared with metal roller , uhmwpe plastic roller has many obvious advantages in performance.
Plastic conveyor rollers Features:
- Free running capability to convey very lightweight loads
- Low cost alternative to stainless steel tube rollers
- Plastic conveyor rollers are available in either grey and blue.
- Ideal for use in humid, wet or wash-down environments
- Non-marking benefits when in contact with the white top surface of flat or modular belts
Product Specification:
Roller for Conveyor market well-known brands, a variety of standard and non-standard roller service nearly a thousand large customers.
| Outer Diameter D1(mm) | Shaft Diameter D2 (mm) | Customized(mm) | Bearing Type (HRB/LYC/SKF) | Bearing size (mm) |
| Dia76 | Dia20 | Custom Length: 150-2000
L1,L2,L3,L4,L5 Spindle Head Custom: Milling, Punch, Thread | 6204 | 20*47*14 |
| Dia89 | Dia20 | 6204 | 20*47*14 |
| Dia102 | Dia20 | 6204 | 20*47*14 |
| Dia25 | 6205 | 25*52*15 |
| Dia108 | Dia20 | 6304 | 25*52*15 |
| Dia25 | 6205 | 25*52*15 |
| Dia114 | Dia25 | 6205 | 25*52*15 |
| Dia127 | Dia25 | 6305 | 25*62*17 |
| Dia30 | 6306 | 30*72*19 |
| Dia133 | Dia25 | 6305 | 25*62*17 |
| Dia140 | Dia25 | 6305 | 25*62*17 |
| Dia152 | Dia35 | 6307 | 35*80*21 |
| Dia159 | Dia35 | 6307 | 35*80*21 |
UHMWPE conveyor belt roller has a novel structure, reliability seal, and advanced material selection. Rollers and housing are made of ultra-High Molecular Weight Polyethylene (UHMWPE) which has anti-friction self-lubrication, impact resistance, anti-adhesion, and anti-corrosion, resistant to aging, and other characteristics.
Characteristics of plastic Conveying roller:
1. High-wear resistance is seven times the wear resistance of steel and four times that of PTFE.
2. High impact resistance two times impact resistance than PC, five times than ABS.
3. Self-lubrication is the same as PTFE, better than steel and brass appended lubricating oil.
4. Anti-corrosion resistance, stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
5. Non-sticking the smooth surface of the product hardly affixes other material.
6. Low-temperature resistance in (-196), it still has the prolongation and high tensile strength.
7. Non-toxic and clean property.
Application:
PE conveyor roller is widely used in the original dock transporting places where dust is bigger and the environment has high corrosive , such as mining , power , steel , stone materials factory , cement and coking plant , coal washing factory , salt plant , alkali plant , fertilizer factory , dock and so on .
FAQ:
Q1: What is the main size of your HDPE /UHMWPE conveyor roller?
A1:φ89,φ102,φ108,φ114,φ127,φ133,φ140,φ152,φ159, The length could be customized. So please do not worry about the size.
Q2: What color of plastic conveyor rolleryou can produce?
A2: Our common colors are black and blue. we can produce other colors according to your requirement too.
Q3:Do you make a customized logo on the HDPE/UHMWPE conveyor rollers?
A4: Yes, we do. Just send your artwork for the logo. We will print the logo on the seals as your request.
Q4: Could you provide a product customization service?
A4: Yes, and it's better to get your drawing or idea of it.
